924BRM

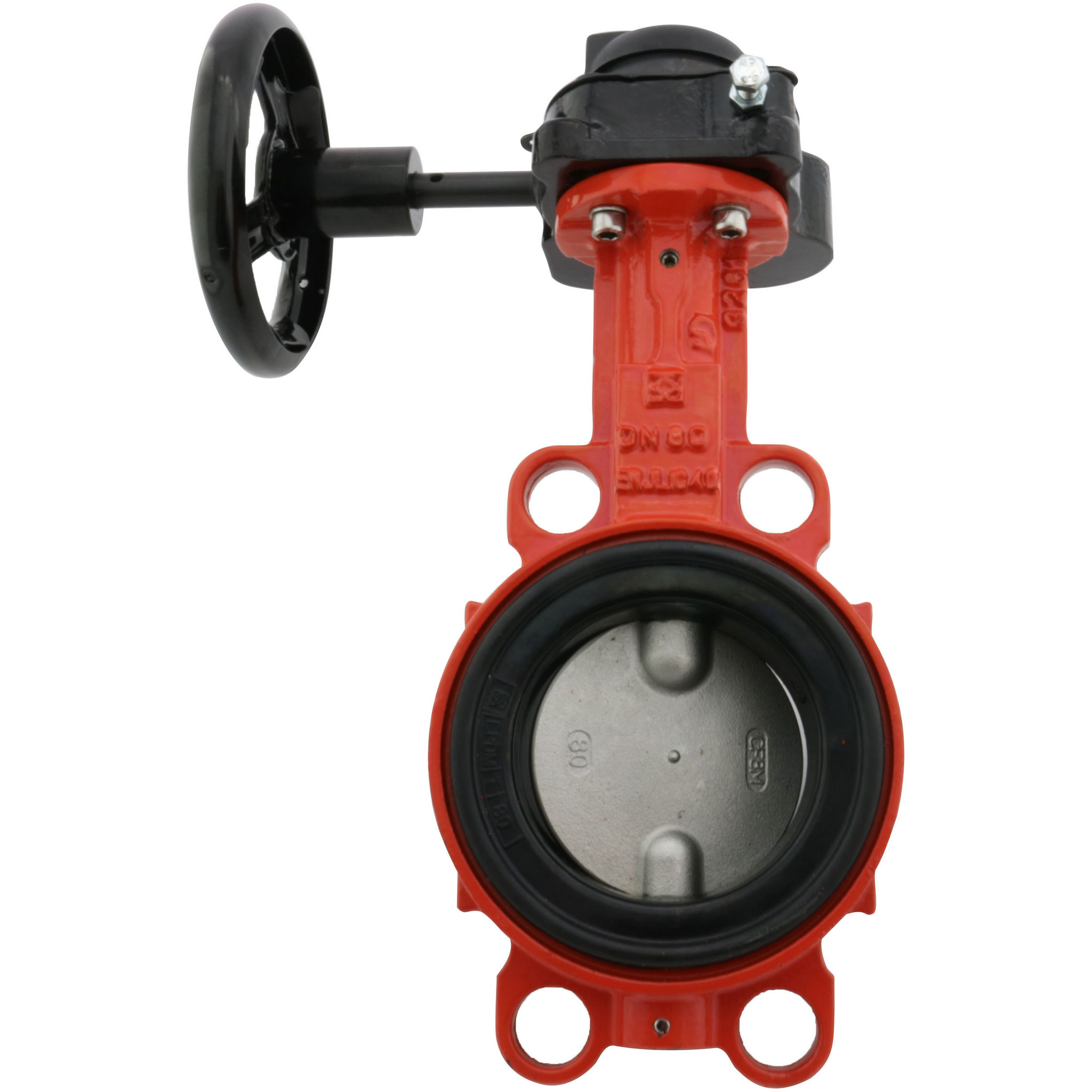

Syrafast Vridspjäll Manuell Snäckväxel EPDM

Visa alla mått +

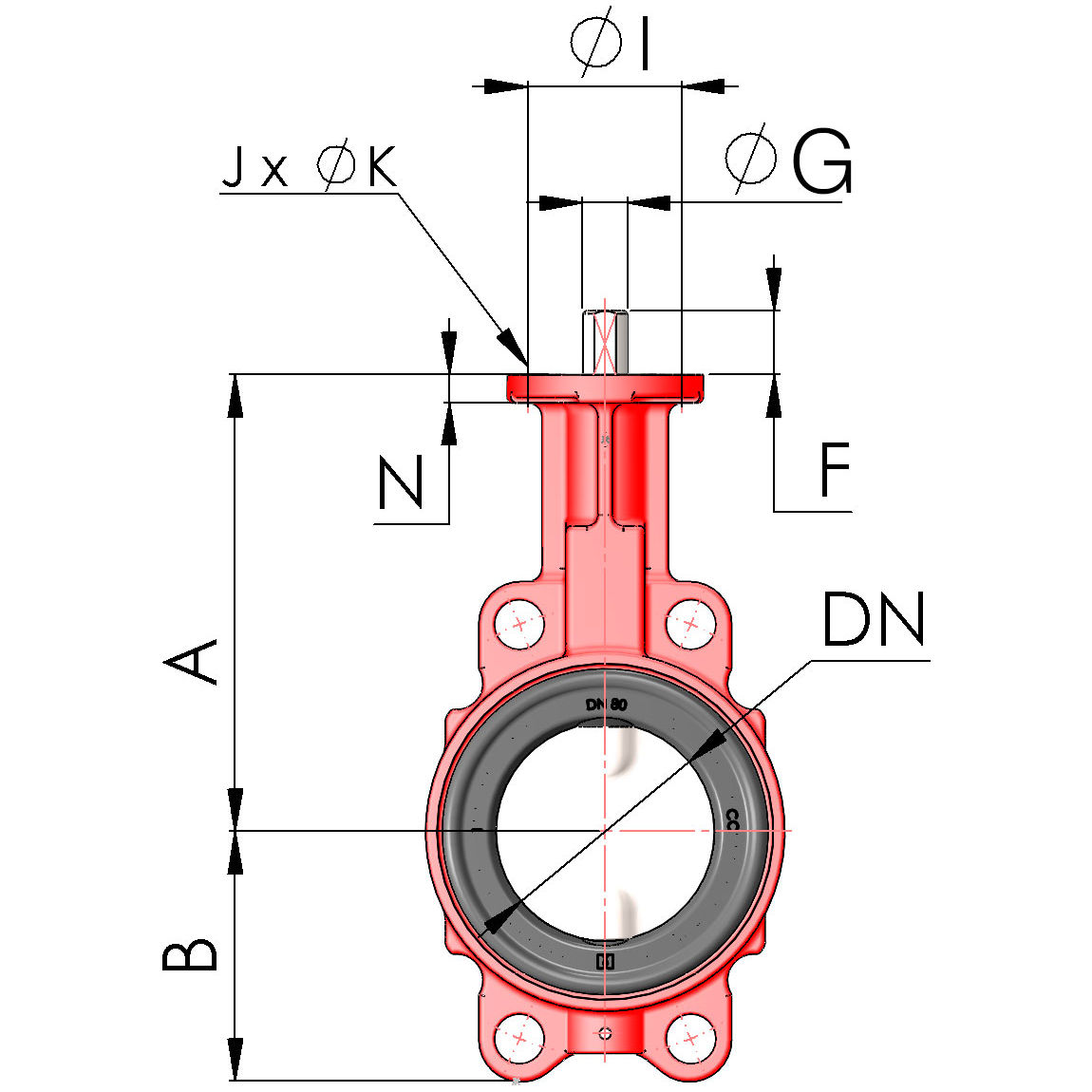

Artikelnummer	DN	A	B	N	F	I	J	K	G
924B/RM-E-0250	250	270	202	17	30	102	4	11	22
924B/RM-E-0300	300	310	237	17	30	102	4	11	22
924B/RM-E-0350	350	325	271	17	36	125	4	14	27
924B/RM-E-0400	400	365	314	21	36	140	4	18	27
924B/RM-E-0450	450	375	330	22	80	140	4	18	10
924B/RM-E-0500	500	482	363	25	80	140	4	18	12
924B/RM-E-0600	600	562	464	25	80	165	4	23	14
924B/RM-E-0700	700	629	537		95	254	8	18	16
924B/RM-E-0800	800	666	601		95	254	8	18	16
924B/RM-E-1000	1000	800	720		130	254	8	18	22

Datablad
