M1OM-V

PP Kulventil flänsad DIN PN10/16 FPM

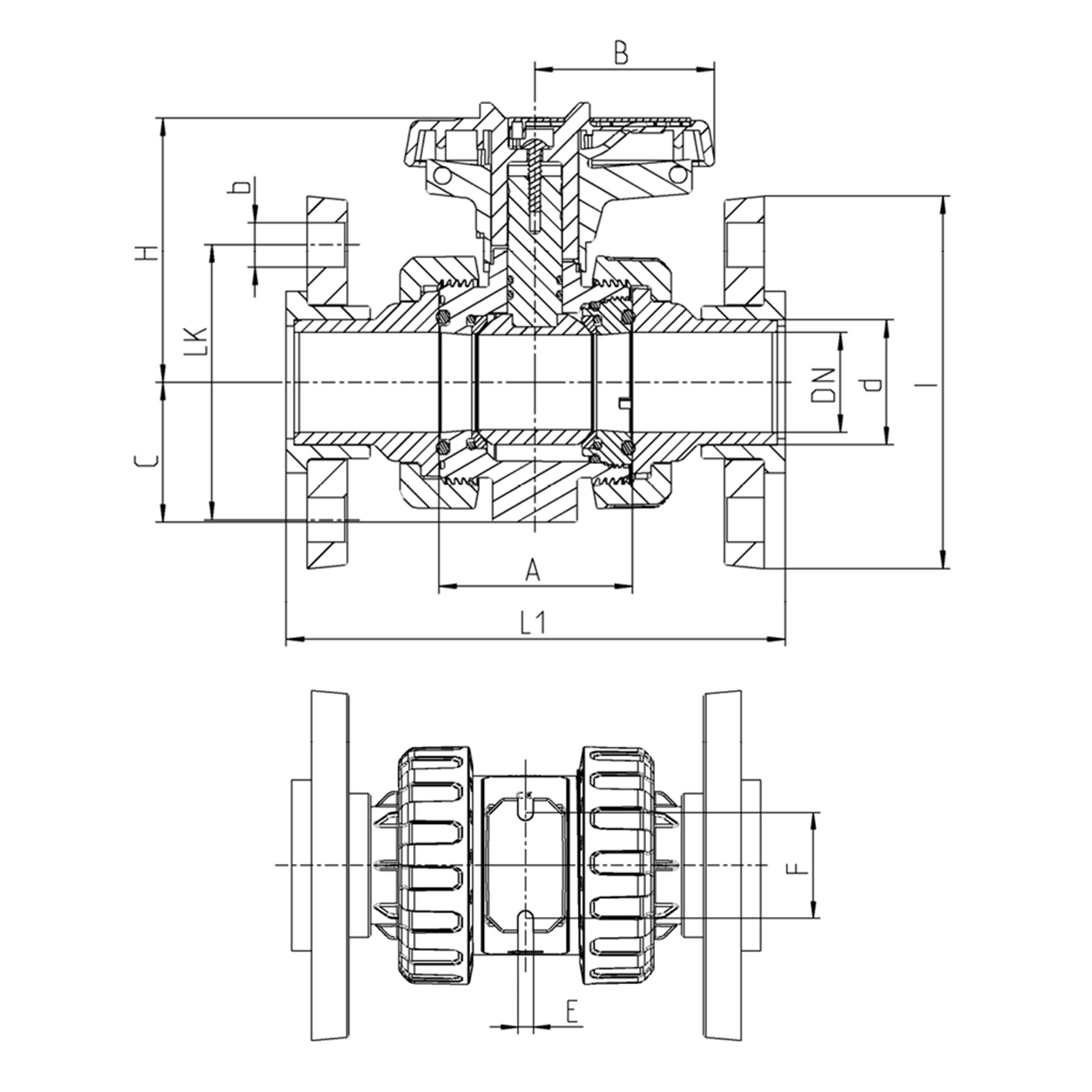

Visa alla mått +

Artikelnummer	RSK	d	DN	I	L1	A	C	H	B	LK	b	F	E
M1OM-V-020	5494095	20	15	95	203	61.5	33	71.5	39.5	65	14	34	5.4
M1OM-V-075-L295		75	65	186	420	131.5	85	143	110	145	18	65	8.3
M1OM-V-025	5494096	25	20	108	225	69	40	78	51	75	14	36	5.4
M1OM-V-032	5494097	32	25	115	236	73	43.5	80	51	85	14	38	6.4
M1OM-V-040	5494098	40	32	140	253	83	51	98.5	63.5	100	18	40	6.4
M1OM-V-050	5494099	50	40	150	274	94	56.5	106.5	72	110	18	45	6.4
M1OM-V-063	5494100	63	50	165	308	109	64.5	113.5	84	125	18	50	6.4
M1OM-V-075	2558158	75	65	186	420	131.5	85	143	110	145	18	65	8.3
M1OM-V-090	2558159	90	80	202	380	156.5	100	161	132	160	18	80	10.3
M1OM-V-110	2558160	110	80	220	437	156.5	100	161	132	180	18	80	10.3
