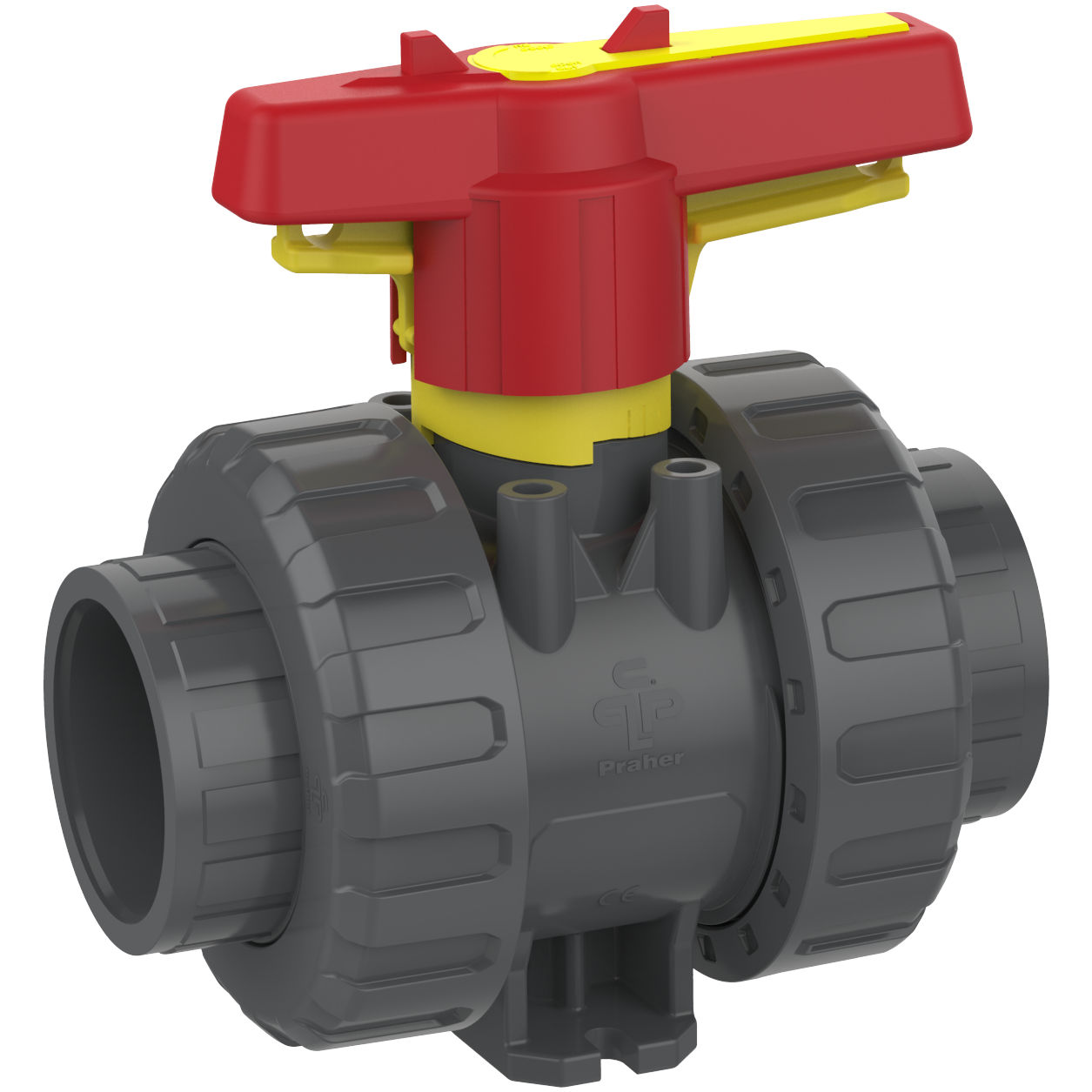

M1IU-VENT-E

PVC-U ventilerad Kulventil inv lim EPDM

Visa alla mått +

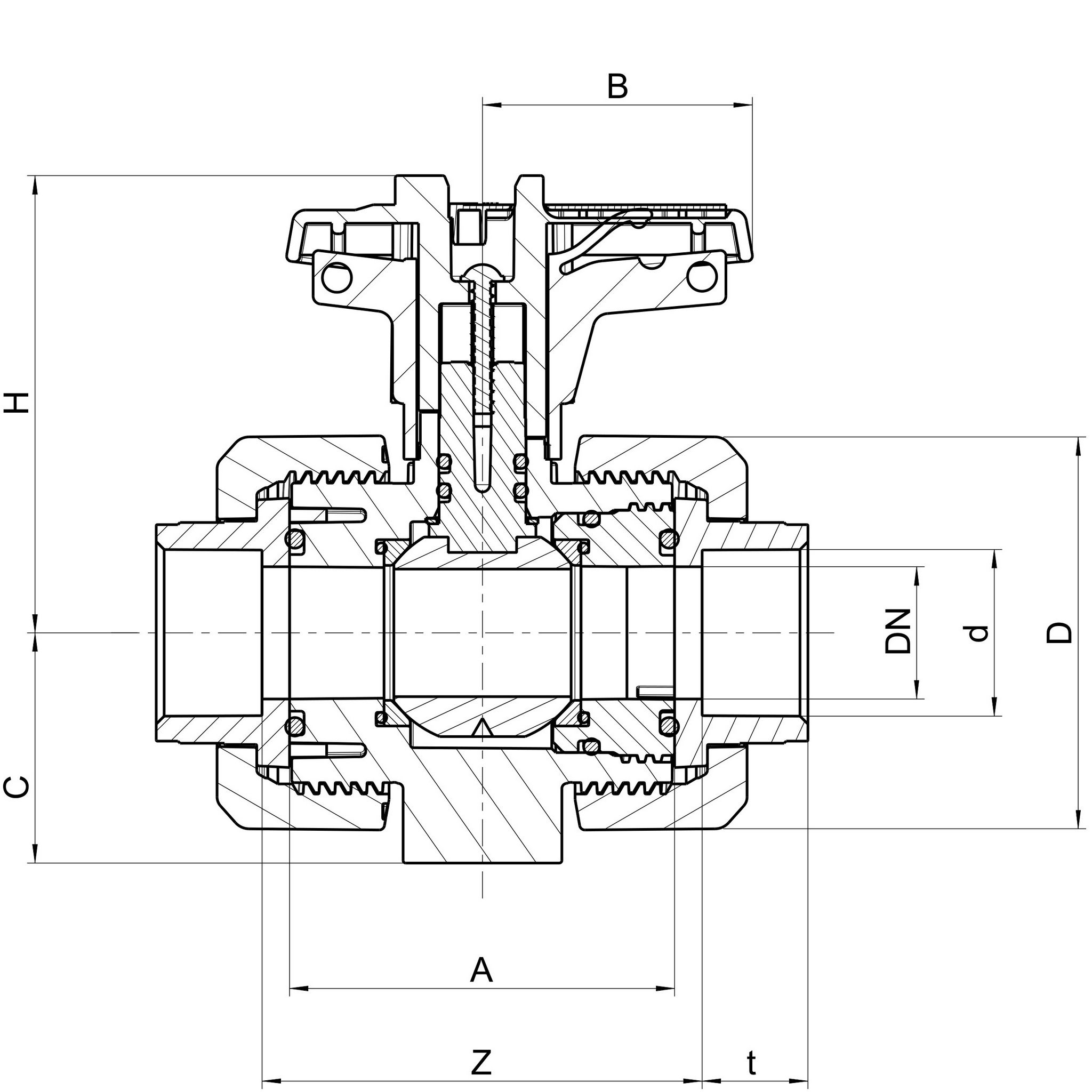

Artikelnummer	d	DN	D	Z	A	t	C	H	B
M1IU-VENT-E-016	16	10	55.5	51	45	16	33	70.5	39.5
M1IU-VENT-E-020	20	15	55.5	50	45	16.5	33	70.5	39.5
M1IU-VENT-E-025	25	20	62	59.5	53.5	19.5	40	77	51
M1IU-VENT-E-032	32	25	70	60	54	23	43	79.5	51
M1IU-VENT-E-040	40	32	84	68.5	62	26.5	51	98	63.5
M1IU-VENT-E-050	50	40	101	86	78	31.5	56	105.5	72
M1IU-VENT-E-063	63	50	115	98	87	38.5	64	114	84
M1IU-VENT-E-075	75	65	149	122	111,5	44.5	85	142	110
M1IU-VENT-E-090	90	80	182	152.5	135.5	56.5	100	153	132
M1IU-VENT-E-110	110	80	182	162	135.5	61	100	153	132
