Name: RBF21
SKU: 25882

Visa alla mått +

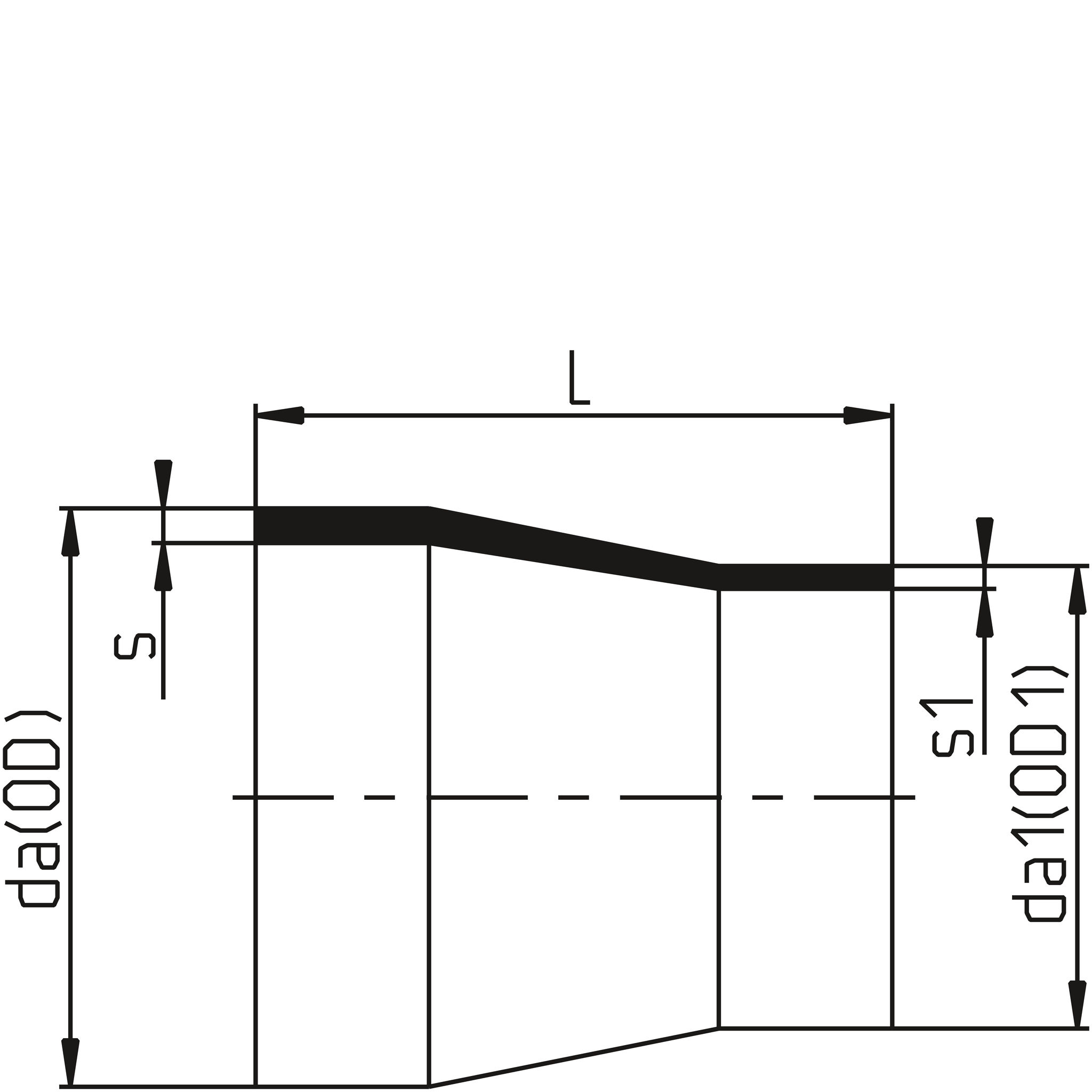

Artikelnummer	da(OD)	da1(OD1)	SDR	s	L	s1	Filer
RBF21-025-020	25	20	SDR21	1.9	50	1.9	CAD/Step
RBF21-032-020	32	20	SDR21	2.4	50	1.9	CAD/Step
RBF21-032-025	32	25	SDR21	2.4	50	1.9	CAD/Step
RBF21-040-020	40	20	SDR21	2.4	55	1.9	CAD/Step
RBF21-040-025	40	25	SDR21	2.4	55	1.9	CAD/Step
RBF21-040-032	40	32	SDR21	2.4	55	2.4	CAD/Step
RBF21-050-020	50	20	SDR21	3	60	1.9	CAD/Step
RBF21-050-025	50	25	SDR21	3	60	1.9	CAD/Step
RBF21-050-032	50	32	SDR21	3	60	2.4	CAD/Step
RBF21-050-040	50	40	SDR21	3	60	2.4	CAD/Step
RBF21-063-025	63	25	SDR21	3	75	1.9	CAD/Step
RBF21-063-032	63	32	SDR21	3	65	2.4	CAD/Step
RBF21-063-040	63	40	SDR21	3	65	2.4	CAD/Step
RBF21-063-050	63	50	SDR21	3	65	3	CAD/Step
RBF21-075-050	75	50	SDR21	3.6	148	3	CAD/Step
RBF21-075-063	75	63	SDR21	3.6	149	3	CAD/Step
RBF21-090-050	90	50	SDR21	4.3	90	3	CAD/Step
RBF21-090-063	90	63	SDR21	4.3	160	3	CAD/Step
RBF21-090-075	90	75	SDR21	4.3	162	3.6	CAD/Step
RBF21-110-063	110	63	SDR21	5.3	103	3	CAD/Step
RBF21-110-090	110	90	SDR21	5.3	90	4.3	CAD/Step
RBF21-140-063	140	63	SDR21	6.7	133	3	CAD/Step
RBF21-140-110	140	110	SDR21	6.7	110	5.3	CAD/Step
RBF21-160-110	160	110	SDR21	7.7	230	5.3	CAD/Step
RBF21-160-140	160	140	SDR21	7.7	226	6.7	CAD/Step
RBF21-225-160	225	160	SDR21	10.8	160	7.7	CAD/Step
RBF21-250-160	250	160	SDR21	11.9	179	7.7	CAD/Step
RBF21-250-225	250	225	SDR21	11.9	180	10.8	CAD/Step

Datablad

Produktblad

Teknisk information

Teknisk information

RBF21
