| RB90U-016-012-P |
2269413 |

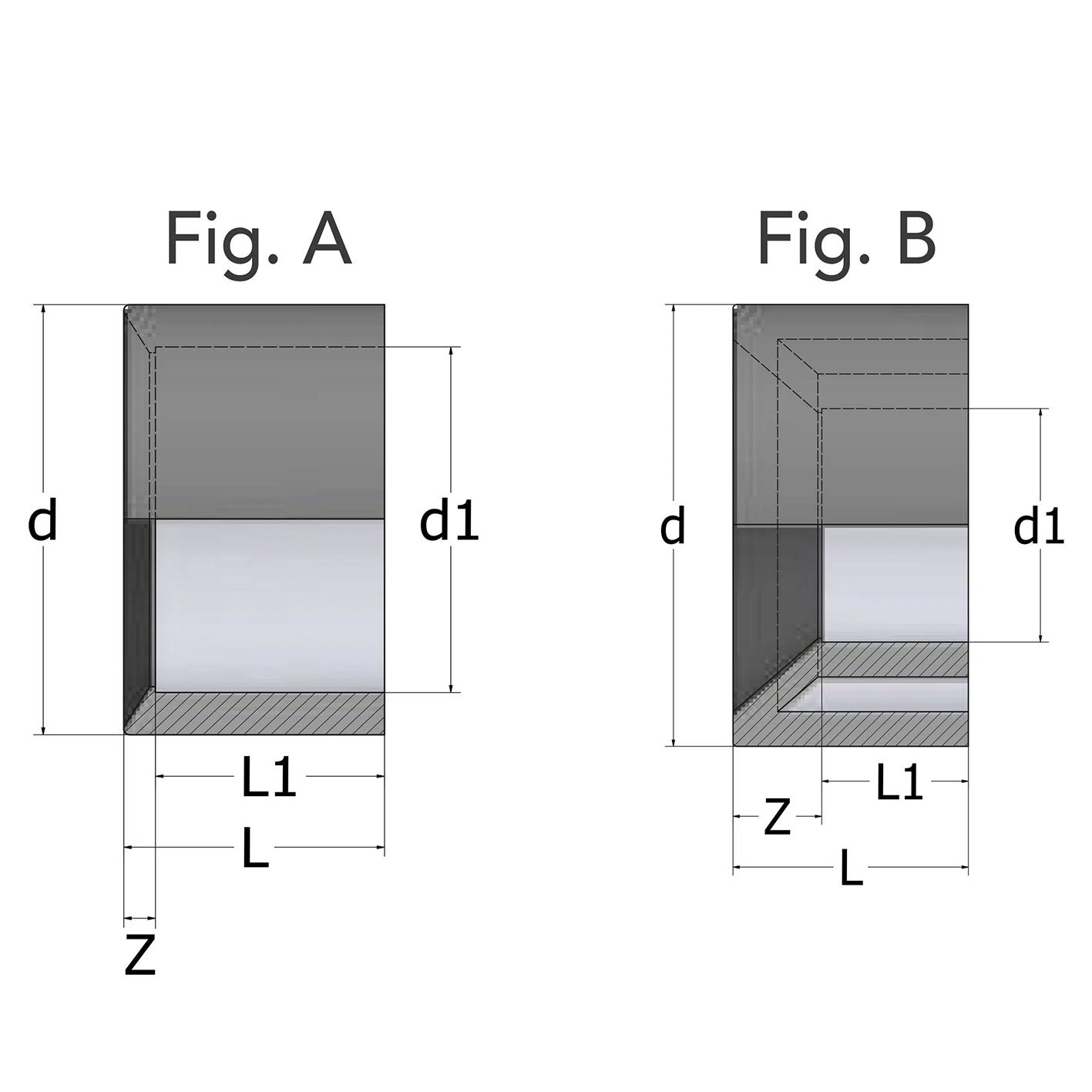

16 | 12 | 14 | | 2 | A |
CAD/Step
|
| RB90U-020-016 |
2269421 |
20 | 16 | 16 | 14 | 2 | A |
|
| RB90U-025-016 |
|
25 | 16 | 19 | 14 | 5 | A |
|
| RB90U-025-020 |
2269447 |
25 | 20 | 19 | 16 | 3 | A |
|
| RB90U-032-020 |
2269462 |
32 | 20 | 22 | 16 | 6 | A |
|
| RB90U-032-025 |
2269470 |
32 | 25 | 22 | 19 | 3 | A |
|
| RB90U-040-020 |
2269496 |
40 | 20 | 26 | 16 | 10 | B |
|
| RB90U-040-025 |
2269504 |
40 | 25 | 26 | 19 | 7 | A |
|
| RB90U-040-032 |
2269512 |
40 | 32 | 26 | 22 | 4 | A |
|
| RB90U-050-025 |
|
50 | 25 | 33 | 19 | 14 | B |
|
| RB90U-050-032 |
2269538 |
50 | 32 | 33 | 22 | 9 | B |
|
| RB90U-050-040 |
2269546 |
50 | 40 | 33 | 28 | 5 | A |
|
| RB90U-063-025 |
|
63 | 25 | 38 | 19 | 19 | B |
|
| RB90U-063-032 |
2269561 |
63 | 32 | 38 | 22 | 16 | B |
|
| RB90U-063-040 |
2269579 |
63 | 40 | 38 | 26 | 12 | B |
|
| RB90U-063-050 |
2269587 |
63 | 50 | 38 | 31 | 7 | A |
|
| RB90U-075-040 |
2269595 |
75 | 40 | 44 | 26 | 18 | B |
|
| RB90U-075-050 |
2269603 |
75 | 50 | 44 | 31 | 14 | B |
|
| RB90U-075-063 |
2269611 |
75 | 63 | 44 | 38 | 6 | A |
|
| RB90U-090-050 |
2269637 |
90 | 50 | 51 | 31 | 20 | B |
|
| RB90U-090-063 |
2269645 |
90 | 63 | 51 | 38 | 13 | B |
|
| RB90U-090-075 |
2269652 |
90 | 75 | 51 | 44 | 7 | A |
|
| RB90U-110-063 |
2269660 |
110 | 63 | 61 | 38 | 23 | B |
|
| RB90U-110-075 |
2269678 |
110 | 75 | 61 | 44 | 17 | B |
|
| RB90U-110-090 |
2269686 |
110 | 90 | 61 | 51 | 10 | A |
|
| RB90U-125-110 |
2269710 |
125 | 110 | 69 | 61 | 8 | A |
|
| RB90U-140-090 |
2269736 |
140 | 90 | 76 | 51 | 25 | B |
|
| RB90U-140-110 |
2269744 |
140 | 110 | 76 | 61 | 15 | B |
|
| RB90U-140-125 |
2269751 |
140 | 125 | 76 | 69 | 7 | A |
|
| RB90U-160-090 |
2269777 |
160 | 90 | 88 | 56 | 30 | B |
|
| RB90U-160-110 |
2269785 |
160 | 110 | 88 | 63 | 25 | B |
|
| RB90U-160-140 |
2269793 |
160 | 140 | 86 | 76 | 10 | A |
|
| RB90U-200-110-P |
2269451 |
200 | 110 | 106 | | 46 | B |
|
| RB90U-200-160 |
2269876 |
200 | 160 | 106 | 86 | 20 | B |
|
| RB90U-225-160 |
2269769 |
225 | 160 | 119 | 86 | 33 | B |
|
| RB90U-225-200 |
2269868 |
225 | 200 | 119 | 106 | 13 | A |
|
| RB90U-250-160 |
2269452 |
250 | 160 | 134 | 87 | 47 | B |
|
| RB90U-250-200 |
2269453 |
250 | 200 | 134 | 107 | 27 | B |
|
| RB90U-250-225 |
2269455 |
250 | 225 | 132 | 120 | 12 | A |
|
| RB90U-280-225 |
2269457 |
280 | 225 | 147 | 120 | 27 | B |
|
| RB90U-280-250 |
2269458 |
280 | 250 | 147 | 132 | 15 | A |
|
| RB90U-315-200 |
|
315 | 200 | 165 | 107 | 58 | B |
|
| RB90U-315-250 |
|
315 | 250 | 165 | 132 | 33 | B |
|
| RB90U-315-225 |
2269460 |
315 | 225 | 165 | 132 | 33 | B |
|
| RB90U-315-280 |
2269464 |
315 | 280 | 165 | 149 | 16 | A |
|
| RB90U-355-315-P |
2269465 |
355 | 315 | 184 | | 20 | B |
|
| RB90U-400-315 |
2269466 |
400 | 315 | 206 | 165 | 41 | B |
|
| RB90U-400-355 |
2269467 |
400 | 355 | 206 | 185 | 21 | A |
|
