RIM-A

PP Reducering

PP-reducering
PN 10
Utvändig/invändig svets

Modeller
Dokument

Modeller

Visa alla mått +

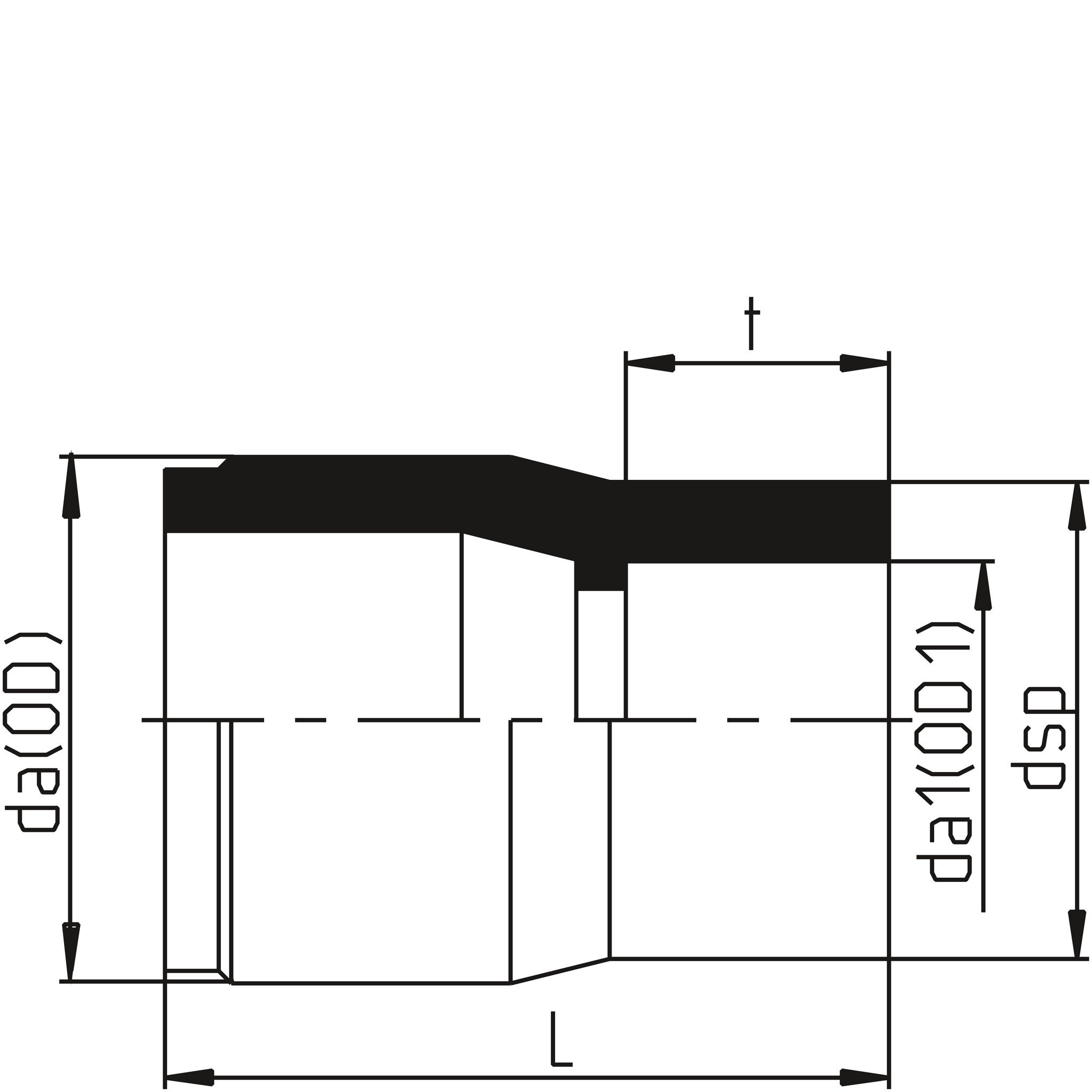

Artikelnummer	RSK	da(OD)	da1(OD1)	dsp	L	t	Filer
RIM 020-016		20	16	28	35	22
RIM-A 025-020		25	20	29.5	39	16	CAD/Step
RIM-A 032-020		32	20	29	44.5	16	CAD/Step
RIM-A 032-025		32	25	34.5	45	17	CAD/Step
RIM-A 040-020		40	20	29.5	50	15	CAD/Step
RIM-A 040-025		40	25	34.5	50	17	CAD/Step
RIM-A 040-032		40	32	42.8	50	19	CAD/Step
RIM-A 050-025		50	25	34.7	34.7	18	CAD/Step
RIM-A 050-032		50	32	42.5	42.5	18.1	CAD/Step
RIM-A 050-040		50	40	52.8	52.8	26	CAD/Step
RIM-A 063-032		63	32	42.9	65	18.5	CAD/Step
RIM-A 063-040		63	40	52.8	64.5	21.5	CAD/Step
RIM-A 063-050		63	50	64.8	65	25	CAD/Step
RIM-A 075-063		75	63	81.5	64	29	CAD/Step
RIM-A 090-063		90	63	81.5	87.5	29	CAD/Step
RIM-A 090-075		90	75	93	86.6	32	CAD/Step
RIM-A 110-063		110	63	81.2	90	29	CAD/Step
RIM-A 110-090		110	90	113	88	37	CAD/Step
