Name: RBM-A-11
SKU: 9732

Visa alla mått +

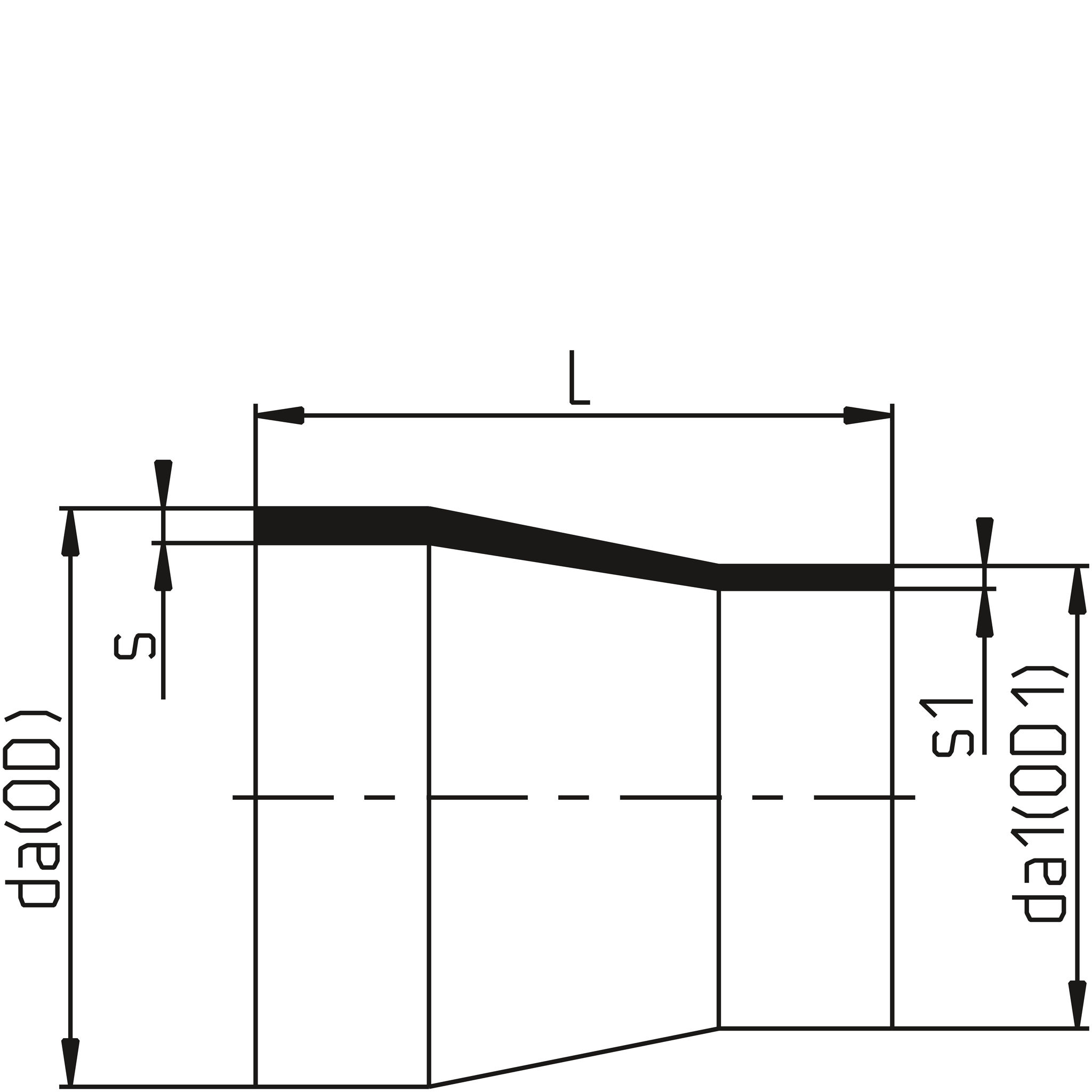

Artikelnummer	RSK	da(OD)	da1(OD1)	L	s	s1	L1	L2	Filer
RBM11-A-025-020		25	25	38	2.3	1.9	14	14	CAD/Step
RBM11-A-032-020		32	20	40	2.9	1.9	14	14	CAD/Step
RBM11-A-032-025		32	25	40	2.9	2.3	14	14	CAD/Step
RBM11-A-040-020		40	20	42	3.7	1.9	14	14	CAD/Step
RBM11-A-040-025		40	25	42	3.7	2.3	14	14	CAD/Step
RBM11-A-040-032		40	32	39	3.7	3	14	14	CAD/Step
RBM11-A-050-025		50	25	47	4.6	2.3	14	14	CAD/Step
RBM11-A-050-032		50	32	41	4.6	3	14	14	CAD/Step
RBM11-A-050-040		50	40	47	4.6	3.7	14	14	CAD/Step
RBM11-A-063-032		63	32	57	5.8	3	18	14	CAD/Step
RBM11-A-063-040		63	40	52	5.8	3.7	18	14	CAD/Step
RBM11-A-063-050		63	50	57	5.8	4.6	18	14	CAD/Step
RBM11-A-075-032		75	32	70	6.8	3	19	14	CAD/Step
RBM11-A-075-040		75	40	70	6.8	3.7	19	14	CAD/Step
RBM11-A-075-050		75	50	63	6.8	4.6	19	14	CAD/Step
RBM11-A-075-063		75	63	59	6.8	5.8	19	18	CAD/Step
RBM11-A-090-050		90	50	76	8.2	4.6	22	14	CAD/Step
RBM11-A-090-063		90	63	68	8.2	5.8	22	18	CAD/Step
RBM11-A-090-075		90	75	68	8.2	6.9	22	19	CAD/Step
RBM11-A-110-050		110	50	90	10	4.6	28	14	CAD/Step
RBM11-A-110-063		110	63	88	10	5.8	28	18	CAD/Step
RBM11-A-110-075		110	75	85	10	6.9	28	19	CAD/Step
RBM11-A-110-090		110	90	85	10	8.2	28	22	CAD/Step
RBM11-A-125-063		125	63	100	11.4	5.8	32	18	CAD/Step
RBM11-A-125-075		125	75	100	11.4	6.9	32	19	CAD/Step
RBM11-A-125-090		125	90	89	11.4	8.2	32	22	CAD/Step
RBM11-A-125-110		125	110	89	11.4	10	32	28	CAD/Step
RBM11-A-140-075		140	75	110	12.7	6.9	35	19	CAD/Step
RBM11-A-140-090		140	90	110	12.7	8.2	35	22	CAD/Step
RBM11-A-140-110		140	110	110	12.7	10	35	28	CAD/Step
RBM11-A-140-125		140	125	92	12.7	11.4	35	32	CAD/Step
RBM11-A-160-090		160	90	100	14.6	8.2	40	22	CAD/Step
RBM11-A-160-110		160	110	105	14.6	10	40	28	CAD/Step
RBM11-A-160-125		160	125	114	14.6	11.4	40	32	CAD/Step
RBM11-A-160-140		160	140	114	14.6	12.8	40	35	CAD/Step
RBM11-A-180-090		180	90	140	16.4	8.2	45	28	CAD/Step
RBM11-A-180-110		180	110	157	16.4	10	45	28	CAD/Step
RBM11-A-180-125		180	125	120	16.4	11.4	45	32	CAD/Step
RBM11-A-180-140		180	140	136	16.4	12.8	45	35	CAD/Step
RBM11-A-180-160		180	160	123	16.4	14.6	45	40	CAD/Step
RBM11-A-200-140		200	140	137	18.2	12.8	50	35	CAD/Step
RBM11-A-200-160		200	160	134	18.2	14.6	50	40	CAD/Step
RBM11-A-200-180		200	180	137	18.2	16.4	50	45	CAD/Step
RBM11-A-225-140		225	140	162	20.5	12.8	55	35	CAD/Step
RBM11-A-225-160		225	160	137	20.5	14.6	55	40	CAD/Step
RBM11-A-225-180		225	180	162	20.5	16.4	55	45	CAD/Step
RBM11-A-225-200		225	200	162	20.5	18.2	55	50	CAD/Step
RBM11-A-250-160		250	160	160	22.7	14.6	60	45	CAD/Step
RBM11-A-250-180		250	180	157	22.7	16.4	60	45	CAD/Step
RBM11-A-250-200	2519241	250	200	158.8	22.7	18.2	60	50	CAD/Step
RBM11-A-250-225		250	225	158	22.7	20.5	60	55	CAD/Step
RBM11-A-280-200		280	200	188	25.4	18.2	70	50	CAD/Step
RBM11-A-280-225		280	225	188	25.4	20.5	70	55	CAD/Step
RBM11-A-280-250		280	250	165	25.4	22.8	70	60	CAD/Step
RBM11-A-315-200		315	200	200	28.6	18.2	80	50	CAD/Step
RBM11-A-315-225		315	225	209	28.6	20.5	80	55	CAD/Step
RBM11-A-315-250		315	250	197.5	28.6	22.8	80	60	CAD/Step
RBM11-A-315-280		315	280	197.5	28.6	25.5	80	70	CAD/Step
