QBM11

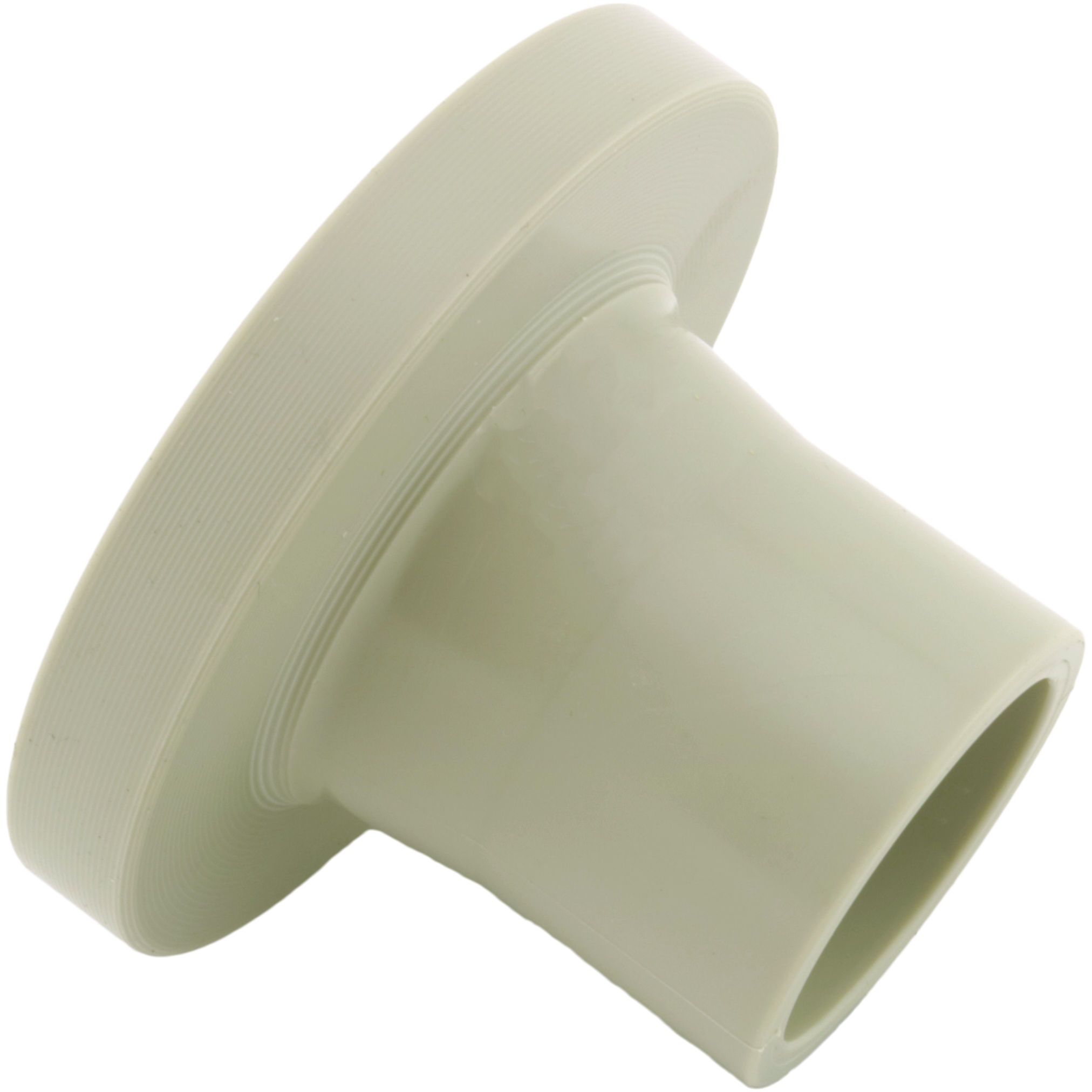

PP Kraghylsa SDR11

  • PP-Kraghylsa
  • SDR11
  • Kort skänkel
  • Formsprutad
Visa alla mått +

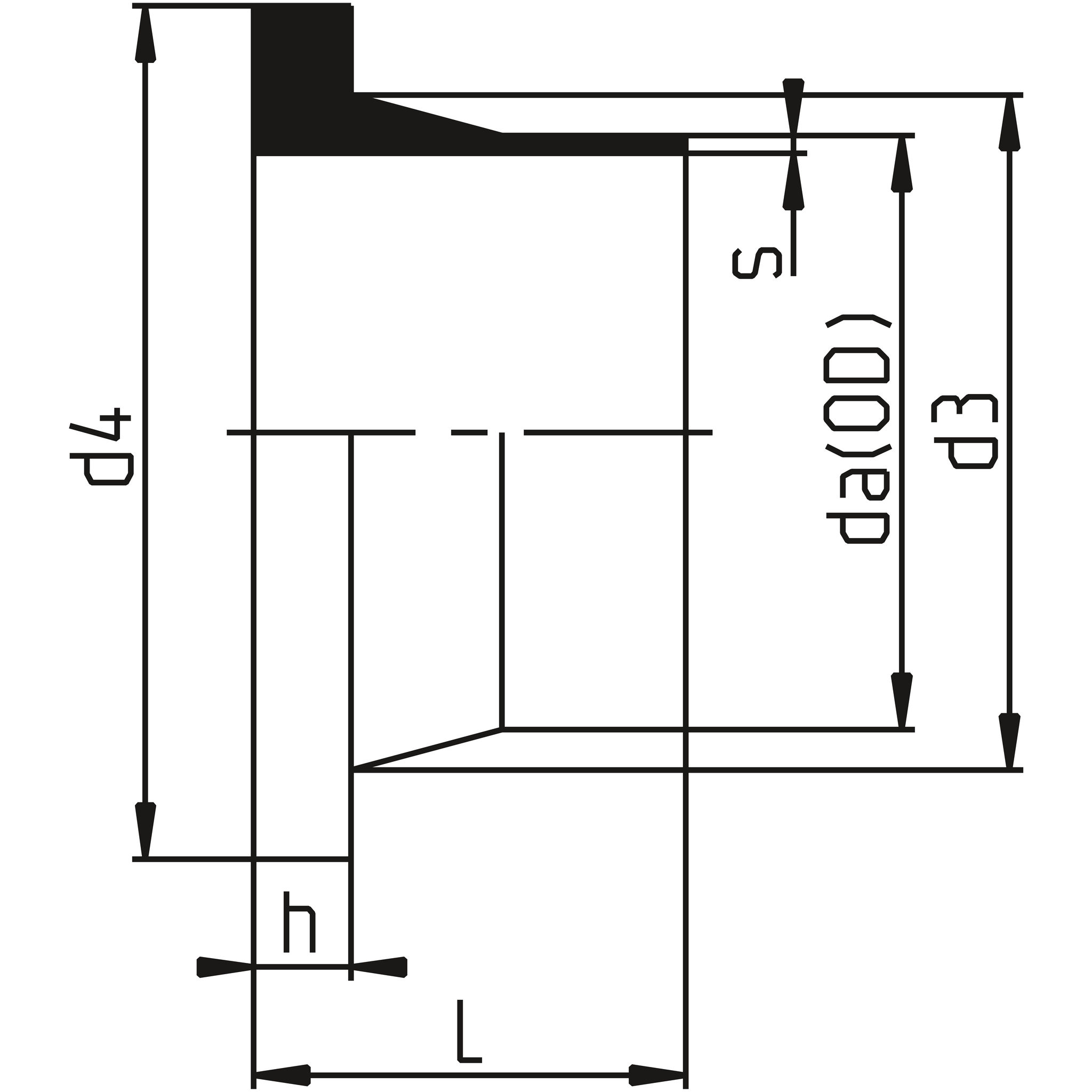

Artikelnummer RSK da(OD)SDRsLd3d4hFiler
QBM11-020 2525963 20SDR111.95227457 CAD/Step
QBM11-025 2525964 25SDR112.35233589 CAD/Step
QBM11-032 2525965 32SDR112.950406810 CAD/Step
QBM11-040 2525966 40SDR113.752507811 CAD/Step
QBM11-050 2525967 50SDR114.653618812 CAD/Step
QBM11-063 2525968 63SDR115.8507510214 CAD/Step
QBM11-075 2525969 75SDR116.850.58912216 CAD/Step
QBM11-090 2525970 90SDR118.28210513817 CAD/Step
QBM11-110 2525971 110SDR11108212515818 CAD/Step
QBM11-125 2525972 125SDR1111.48213215825 CAD/Step
QBM11-140 2525973 140SDR1112.79215518825 CAD/Step
QBM11-160 2525974 160SDR1114.69217521225 CAD/Step
QBM11-180 2525975 180SDR1116.49318321230 CAD/Step
QBM11-200 2525976 200SDR1118.211423226832 CAD/Step
QBM11-225 2525977 225SDR1120.511323526832 CAD/Step
QBM11-250 2525978 250SDR1122.713028532035 CAD/Step
QBM11-280 2525979 280SDR1125.412828832035 CAD/Step
QBM11-315 2525980 315SDR1128.613633537035 CAD/Step
QBM11-355 2525981 355SDR1132.215037343040 CAD/Step
QBM11-400 2525982 400SDR1136.315542748246 CAD/Step
QBM11-450 2525983 450SDR1140.916551458560 CAD/Step
QBM11-500 2525984 500SDR1145.417553058560 CAD/Step
QBM11-630 630SDR1157.217564268560
Datablad

Teknisk information
