Name: TREL11
SKU: 55605

Visa alla mått +

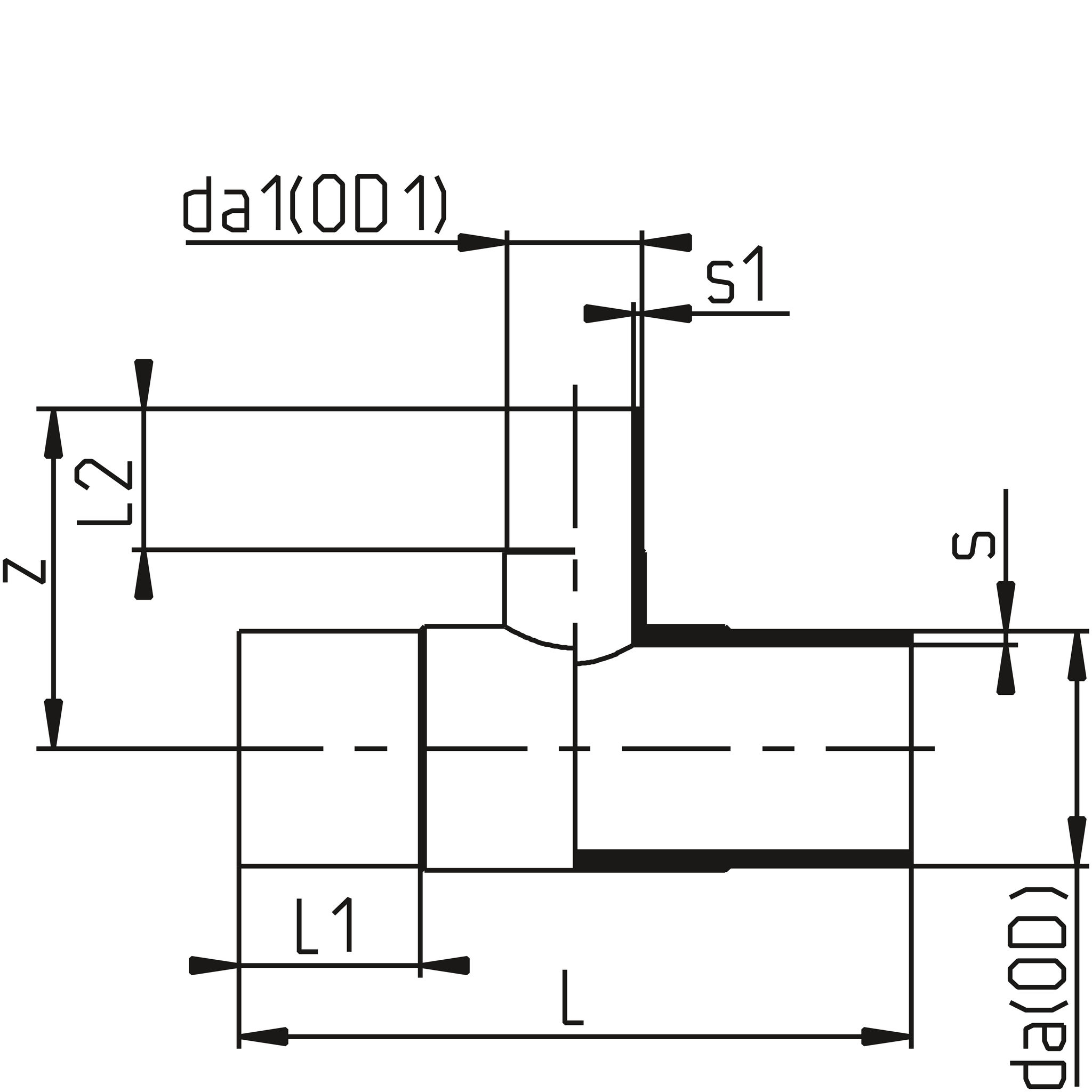

Artikelnummer	RSK	da*da1	SDR	s	z	L	s1	L1	L2	Filer
TREL11-RC-063-032		63x32	SDR11	5,8	100	216	3	60	50	CAD/Step
TREL11-RC-063-050	2433596	63×50	SDR11	5.8	102.5	216	4.6	60	56	CAD/Step
TREL11-RC-075-032	2433597	75×32	SDR11	6.8	106	258	3	70	46	CAD/Step
TREL11-RC-075-050	2433598	75×50	SDR11	6.8	110	257	4.6	70	56	CAD/Step
TREL11-RC-075-063	2433599	75×63	SDR11	6.8	117	252	5.8	70	63	CAD/Step
TREL11-RC-090-063	2433600	90×63	SDR11	8.2	136	266	5.8	79	64	CAD/Step
TREL11-RC-090-075	2433601	90×75	SDR11	8.2	138	272	6.8	73	68	CAD/Step
TREL11-RC-110-063	2433602	110×63	SDR11	10	155	305	5.8	85	65	CAD/Step
TREL11-RC-110-075	2433603	110×75	SDR11	10	149	305	6.8	83	68	CAD/Step
TREL11-RC-110-090	2433604	110×90	SDR11	10	155	310	8.2	84	79	CAD/Step
TREL11-RC-125-075		125x75	SDR11	11.4	170	350	6.8	110	75	CAD/Step
TREL11-RC-125-090	2433605	125×90	SDR11	11.4	168	332	8.2	109	89	CAD/Step
TREL11-RC-125-110	2433606	125×110	SDR11	11.4	167	340	10	90	83	CAD/Step
TREL11-140-063		140x63	SDR11	12.7	165	386	5.8	103	69	CAD/Step
TREL11-140-075		140x75	SDR11	12.7	177	386	6.8	104	77	CAD/Step
TREL11-RC-160-063	2433607	160×63	SDR11	14.6	172	340	5.8	99.5	66	CAD/Step
TREL11-RC-160-075	2433608	160×75	SDR11	14.6	179	344	6.8	101	76	CAD/Step
TREL11-RC-160-090	2433609	160×90	SDR11	14.6	177	343	8.2	101	80	CAD/Step
TREL11-RC-160-110	2433610	160×110	SDR11	14.6	196	392	10	98	84.5	CAD/Step
TREL11-RC-180-090	2433611	180×90	SDR11	16.4	200	420	8.2	136	97	CAD/Step
TREL11-RC-180-110	2433612	180×110	SDR11	16.4	220	455	10	145	101	CAD/Step
TREL11-RC-180-160	2433613	180×160	SDR11	16.4	204	412	14.6	105	94	CAD/Step
TREL11-RC-200-063	2433614	200×63	SDR11	18.2	226	553	5.8	134	82	CAD/Step
TREL11-RC-200-090	2433615	200×90	SDR11	18.2	229	550	8.2	134.5	96	CAD/Step
TREL11-RC-200-110	2433616	200×110	SDR11	18.2	242	550	10	134	103	CAD/Step
TREL11-RC-200-125	2433617	200×125	SDR11	18.2	245	550	11.4	134	110	CAD/Step
TREL11-RC-200-160	2433618	200×160	SDR11	18.2	270	550	14.6	134	114	CAD/Step
TREL11-RC-225-075	2433619	225×75	SDR11	20.5	226	440	6.8	120	75	CAD/Step
TREL11-RC-225-090	2433620	225×90	SDR11	20.5	224	442	8.2	120	79	CAD/Step
TREL11-RC-225-110	2433621	225×110	SDR11	20.5	226	439	10	120	85	CAD/Step
TREL11-RC-225-160	2433622	225×160	SDR11	20.5	246	486	14.6	120	98	CAD/Step
TREL11-RC-225-180	2433623	225×180	SDR11	20.5	274	546	16.4	132	135	CAD/Step
TREL11-RC-250-050		250x50	SDR11	22.7	230	630	4.6	148	71	CAD/Step
TREL11-RC-250-075		250x75	SDR11	22.7	245	630	6.8	148	86	CAD/Step
TREL11-RC-250-110	2450382	250x110	SDR11	22.7	245	630	10	148	86	CAD/Step
TREL11-RC-250-160	2450383	250x160	SDR11	22.7	270	625	14.6	148	100	CAD/Step
TREL11-RC-250-180		250x180	SDR11	22.7	268	625	16.4	148	110	CAD/Step
TREL11-RC-250-200	2450385	250x200	SDR11	22.7	294	625	18.2	148	116	CAD/Step
TREL11-RC-280-110		280x110	SDR11	25.4	326	653	10	126		CAD/Step
TREL11-RC-280-160		280x160	SDR11	25.4	321	642	14.6	146	110
TREL11-RC-315-090		315x90	SDR11	28.6	290	545	8.2	170	90	CAD/Step
TREL11-RC-315-110	2433636	315×110	SDR11	28.6	290	546	10	170	100	CAD/Step
TREL11-RC-315-125		315x125	SDR11	28.6	302	575	11.4	170	102.5	CAD/Step
TREL11-RC-315-160	2433639	315×160	SDR11	28.6	310	575	14.6	170	120	CAD/Step
TREL11-RC-315-180		315x180	SDR11	28.6	308	640	16.4	170	108	CAD/Step
TREL11-RC-315-200	2433641	315x200	SDR11	28.6	326	640	18.2	170	126	CAD/Step
TREL11-RC-315-225	2433642	315×225	SDR11	28.6	335	638	20.5	170	145	CAD/Step
TREL11-RC-315-250	2433643	315×250	SDR11	28.6	333	670	22.7	170	150	CAD/Step
TREL11-RC-355-160		355x160	SDR11	32.2	325	874	14.6	188	103	CAD/Step
TREL11-RC-355-225		355x225	SDR11	21.1	350	883	13.4	188	125	CAD/Step
TREL11-RC-355-250		355x250	SDR11	32.2	360	874	22.7	188	134	CAD/Step
TREL11-RC-400-110		400x110	SDR11	36.3	330	940	10	198	87	CAD/Step
TREL11-RC-400-160		400x160	SDR11	36.3	350	940	14.6	198	103	CAD/Step
TREL11-RC-400-200		400x200	SDR11	36.3	365	940	18.2	198	117	CAD/Step
TREL11-RC-400-225		400x225	SDR11	36.3	375	940	20.5	198	125	CAD/Step
TREL11-RC-400-250		400x250	SDR11	36.3	383	975	22.7	206	136	CAD/Step
TREL11-RC-400-315		400x315	SDR11	36.3	415	940	28.6	198	155	CAD/Step
