Name: SO CV 43A40
SKU: 76114

Visa alla mått +

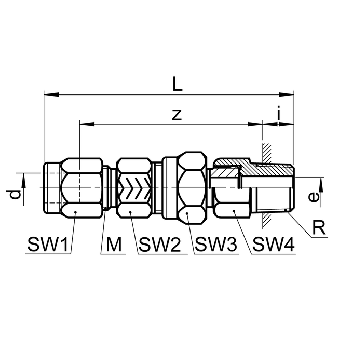

Artikelnummer	d	R	bar	M	SW1/SW2/SW3/SW4	L	i	z	e
0283400065	4	1/4	100	M10x1	12/12/14/14	58.5	8	43	3.4
0283400100	6	1/8	100	M10x1	12/12/14/12	54	5	41.5	3.8
0283400110	6	1/4	100	M10x1	12/12/14/14	58.5	8	43	3.8
0283400120	6	3/8	100	M10x1	12/12/14/17	57	8	41.5	3.8
0283400160	8	1/8	100	M12x1	14/14/17/14	61	5	48	5
0283400170	8	1/4	100	M12x1	14/14/17/14	65	8	49	5.8
0283400180	8	3/8	100	M14x1	14/14/17/17	64.5	8	48.5	5.8
0283400270	10	1/4	64	M14x1	17/19/22/17	73	8	55	7.5
0283400280	10	3/8	64	M20x1.5	17/19/22/17	72.5	8	54.5	7.5
0283400390	12	3/8	50	M20x1.5	24/24/27/24	82.5	8	62	10
0283400400	12	1/2	50	M20x1.5	24/24/27/24	83.5	10	61	10
0283400405	12	3/4	50	M20x1.5	24/24/27/27	85	12	60.5	10
0283400504	14	1/2	50	M20x1.5	24/24/27/24	83.5	10	61	11
0283400534	15	1/2	50	M20x1.5	24/24/27/24	83.5	10	61	11

Datablad

Produktblad

SO CV 43A40
