SOL 52421 NPT

Vinkelunion utv. gänga

Visa alla mått +

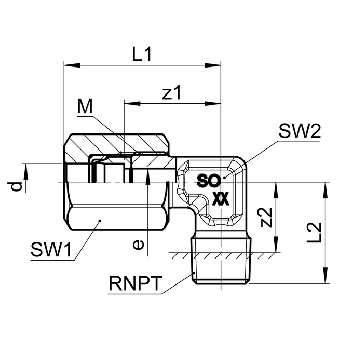

Artikelnummer	d	R	bar	M	SW1/SW2	L1/L2	z1/z2	e
0782402100	6	NPT1/8	400	M10x1	14/9	26/17.5	16/13.5	4.5
0782402135	6.35	NPT1/8	330	M10x1	14/9	27/17.5	16.5/13.5	4.5
0782402170	8	NPT1/4	330	M12x1	17/10	28/22.5	18/18.5	6.5
0782402230	9.52	NPT1/4	330	M14x1	19/12	33.5/25	21/19	8
0782402270	10	NPT1/4	330	M14x1	19/12	33/25	20.5/19	8.5
0782402390	12	NPT3/8	330	M16x1	22/14	35/26	21.5/20	10
0782402434	12.7	NPT1/2	250	M20x1.5	27/17	39.5/29.5	24.5/21.5	11
0782402534	15	NPT1/2	330	M20x1.5	27/17	39/29.5	24/21.5	13
