SO82421

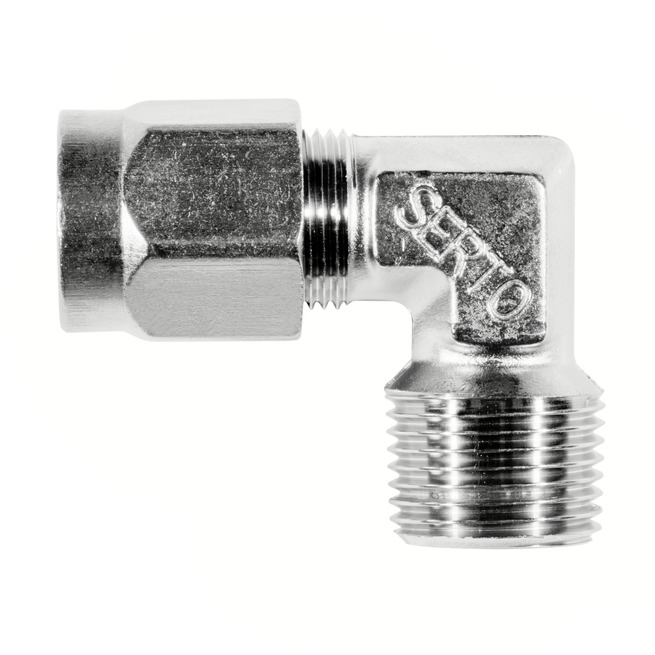

Vinkelunion utv. gänga förnicklad

Visa alla mått +

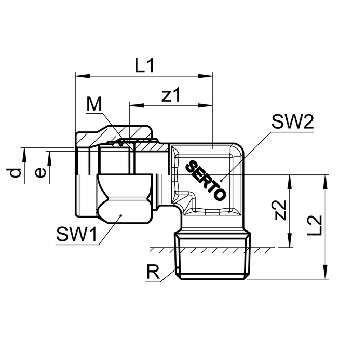

Artikelnummer	d	R	bar	M	SW1/SW2	L1/L2	z1/z2	e
0382401065	4	1/4	100	M10x1	12/10	25.5/22.5	18/13	3.4
0382401100	6	1/8	200	M10x1	12/10	23.5/17.5	16/12	4.5
0382401110	6	1/4	200	M10x1	12/10	25.5/22.5	18/13	4
0382401160	8	1/8	125	M12x1	14/10	26/18	18/11.5	6
0382401180	8	3/8	125	M14x1	17/14	30.5/25	20.5/15	6.5
0382401270	10	1/4	64	M14x1	17/14	30.5/25	20.5/15.5	8
0382401285	10	1/2	64	M16x1	19/19	34/29.5	23/16.5	8.5
0382401390	12	3/8	80	M16x1	19/17	32.5/26	21.5/16	10
0382401400	12	1/2	80	M16x1	19/19	34/29.5	23/18	10
0382401646	18	1/2	25	M24x1.5	27/22	40.5/31.5	26.5/20	15

Datablad
