Name: SO53121 NPT
SKU: 84606

Visa alla mått +

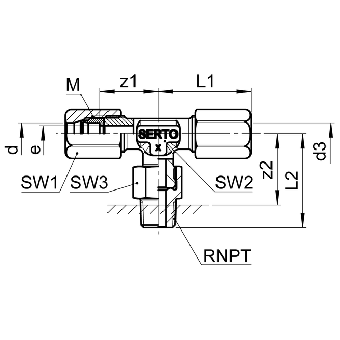

Artikelnummer	d	R	d3	bar	M	SW1/SW2/SW3	L1/L2	z1/z2	e
0583102100	6	NPT1/8	6	200	M10x1	12/9/12	24/28	16/21.5	4.5
0583102110	6	NPT1/4	6	200	M10x1	12/9/14	24/32	16/22	4.5
0583102140	6.35	NPT1/8	6.35	200	M10x1	12/9/12	24/28	16/21.5	4.5
0583102145	6.35	NPT1/4	6.35	200	M10x1	12/9/14	24/32	16/22	4.5
0583102170	8	NPT1/4	8	200	M12x1	14/10/14	26.5/34	18/24	6.5
0583102210	9.52	NPT1/4	9.52	160	M14x1	17/12/17	32/36.5	16/27	8
0583102270	10	NPT1/4	10	160	M14x1	17/12/17	32/36.5	20.5/26.5	8.5
0583102290	10	NPT1/2	10	160	M16x1	19/14/22	33.5/42.5	20.5/29	8.5
0583102390	12	NPT3/8	12	160	M16x1	19/14/19	33.5/38.5	21.5/27	9.5
0583102400	12	NPT1/2	12	160	M16x1	19/14/22	33.5/42.5	21.5/29	9.5
0583102540	14	NPT1/2	14	100	M20x1.5	24/17/24	38.5/45	24.5/31.5	12
0583102590	15	NPT1/2	15	100	M20x1.5	24/17/24	38.5/45	24.5/31.5	13

Datablad

Produktblad

SO53121 NPT
