Name: SO50001
SKU: 39553

Visa alla mått +

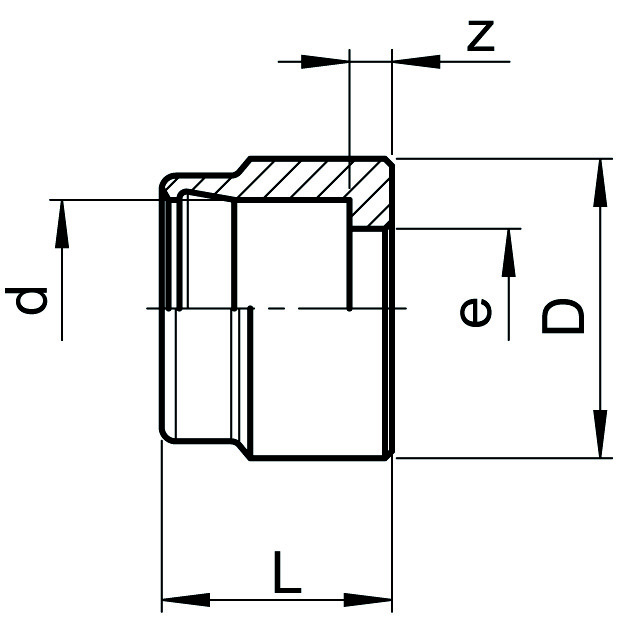

Artikelnummer	d	bar	L	D	z	e
0560010020	2	250	3.5	5	0.7	1.5
0560010030	3	250	4.5	5	0.9	2.5
0560010040	4	250	5	6	1	3.5
0560010050	5	250	5.5	6.8	1.1	4
0560010060	6	200	6.5	8.5	1.2	4.5
0560010080	8	200	7	10.5	1.2	6.5
0560010100	10	160	7.8	12.7	1.2	8.5
0560010120	12	160	8.8	14.7	1.2	10
0560010150	15	100	10	18	1.4	13
0560010180	18	100	11.9	22	1.4	16
0560010220	22	64	13.5	26	1.4	20
0560010280	28	40	15.4	32.5	2	24
0560010032	3.2	250	4.5	5	0.9	2.5
0560010063	6.35	200	6.5	8.5	1.2	4.5
0560010079	7.94	200	7	10.5	1.2	6.5
0560010095	9.52	160	7.8	12.7	1.2	8
0560010127	12.7	160	10.5	18	1.5	11

Datablad

Produktblad

SO50001
