Name: SO22421
SKU: 37773

Visa alla mått +

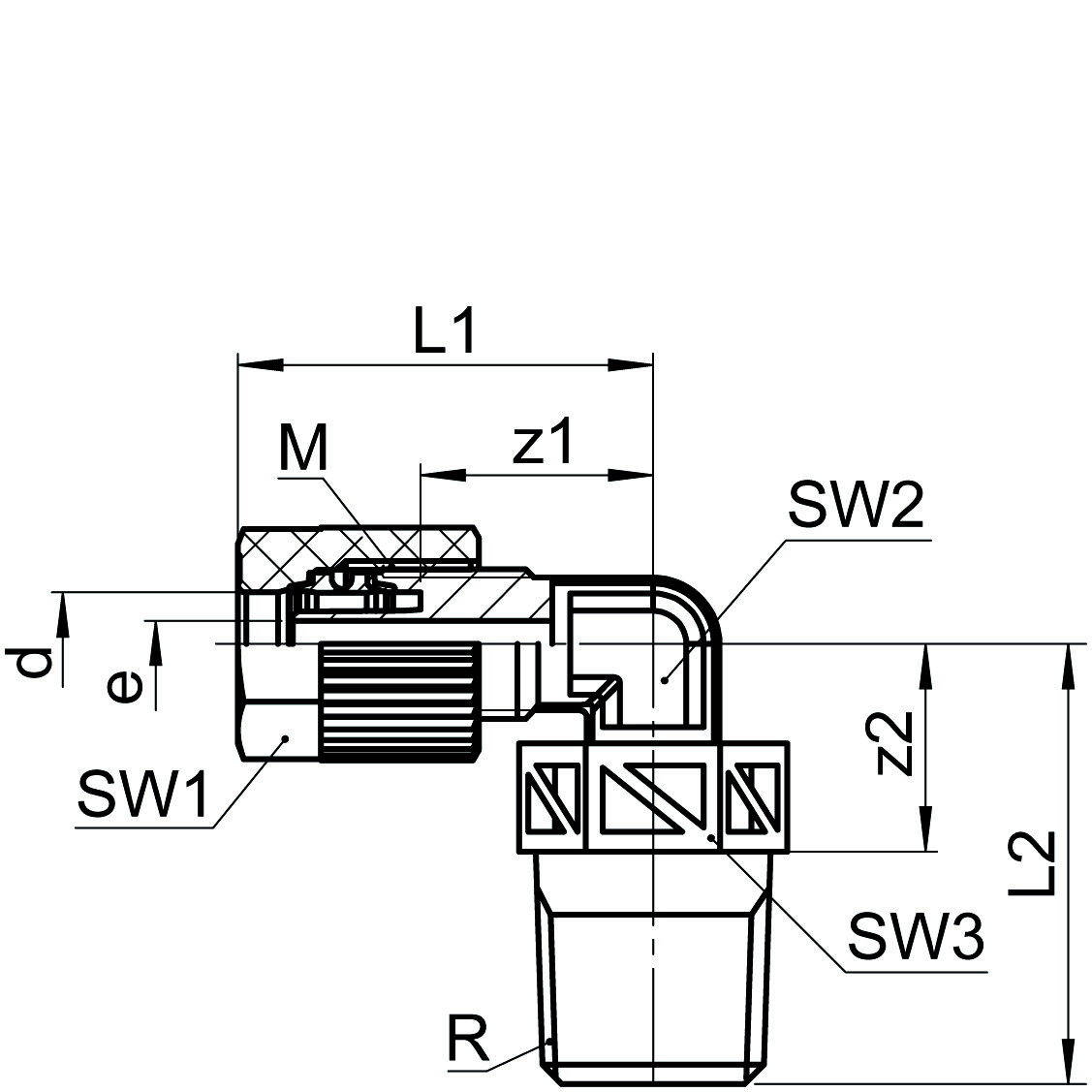

Artikelnummer	D/d×G	R	bar	M	SW1/SW2	SW3	L1	L2	z1/z2	e
1282401060	4/2	1/8	10	10 x 1	12/8	10	25	19	14/11	3.1
1282401065	4/2	1/4	10	10 x 1	12/8	14	25	24.5	14/12,5	3.1
1282401100	6/4	1/8	10	10 x 1	12/8	10	25	19	14/11	2.8
1282401110	6/4	1/4	10	10 x 1	12/8	14	25	24.5	14/12,5	2.8
1282401160	8/6	1/8	10	12 x 1	14/10	10	26.5	20	14,5/12	4.8
1282401170	8/6	1/4	10	12 x 1	14/10	14	26	25.5	14,5/13,5	4.8
1282401270	10/8	1/4	10	14 x 1	17/12	14	30	26.5	16/14,5	6.6
1282401280	10/8	3/8	10	14 x 1	17/12	17	30	27	15,5/15	6.6
1282401320	10/7	1/4	10	14 x 1	17/12	14	30	26.5	16/14,5	5.6
1282401330	10/7	3/8	10	14 x 1	17/12	17	30	27	16/15	5.6
1282401380	12/10	1/4	10	16 x 1	19/13	14	32.5	27.5	16/15,5	8
1282401390	12/10	3/8	10	16 x 1	19/13	17	32.5	28	16/16	8
1282401400	12/10	1/2	10	16 x 1	19/13	22	32.5	35.5	16/19,5	8
1282401410	12/9	1/4	10	16 x 1	19/13	14	32.5	27.5	16/15,5	7
1282401412	12/9	3/8	10	16 x 1	19/13	17	32.5	28	16/16	7
1282401414	12/9	1/2	10	16 x 1	19/13	22	32.5	35.5	16/19,5	7
1282401564	16/13	3/8	10	22 x 1,5	24/19	17	45.5	31	23/19	8
1282401566	16/13	1/2	10	22 x 1,5	24/19	22	45.5	38.5	23/22,5	12
1282402060	4/2	1/8	10	10 x 1	12/8	10	25	21	14/11	3.1
1282402065	4/2	1/4	10	10 x 1	12/8	14	25	26.5	14/12,5	3.1
1282402100	6/4	1/8	10	10 x 1	12/8	10	25	21	14/11	2.8
1282402110	6/4	1/4	10	10 x 1	12/8	14	25	26.5	14/12,5	2.8
1282402160	8/6	1/8	10	12 x 1	14/10	10	26.5	22	14,5/12	4.8
1282402170	8/6	1/4	10	12 x 1	14/10	14	26.5	27.5	14,5/13,5	4.8
1282402270	10/8	1/4	10	14 x 1	17/12	14	30	28.5	16/14,5	6.6
1282402280	10/8	3/8	10	14 x 1	17/12	17	30	29	16/15	6.6
1282402320	10/7	1/4	10	14 x 1	17/12	14	30	28.5	16/14,5	5.6
1282402330	10/7	3/8	10	14 x 1	17/12	17	30	29	16/15	5.6

Datablad

Produktblad

Teknisk information

Teknisk information

SO22421
