Name: SO21624 OR
SKU: 37707

Visa alla mått +

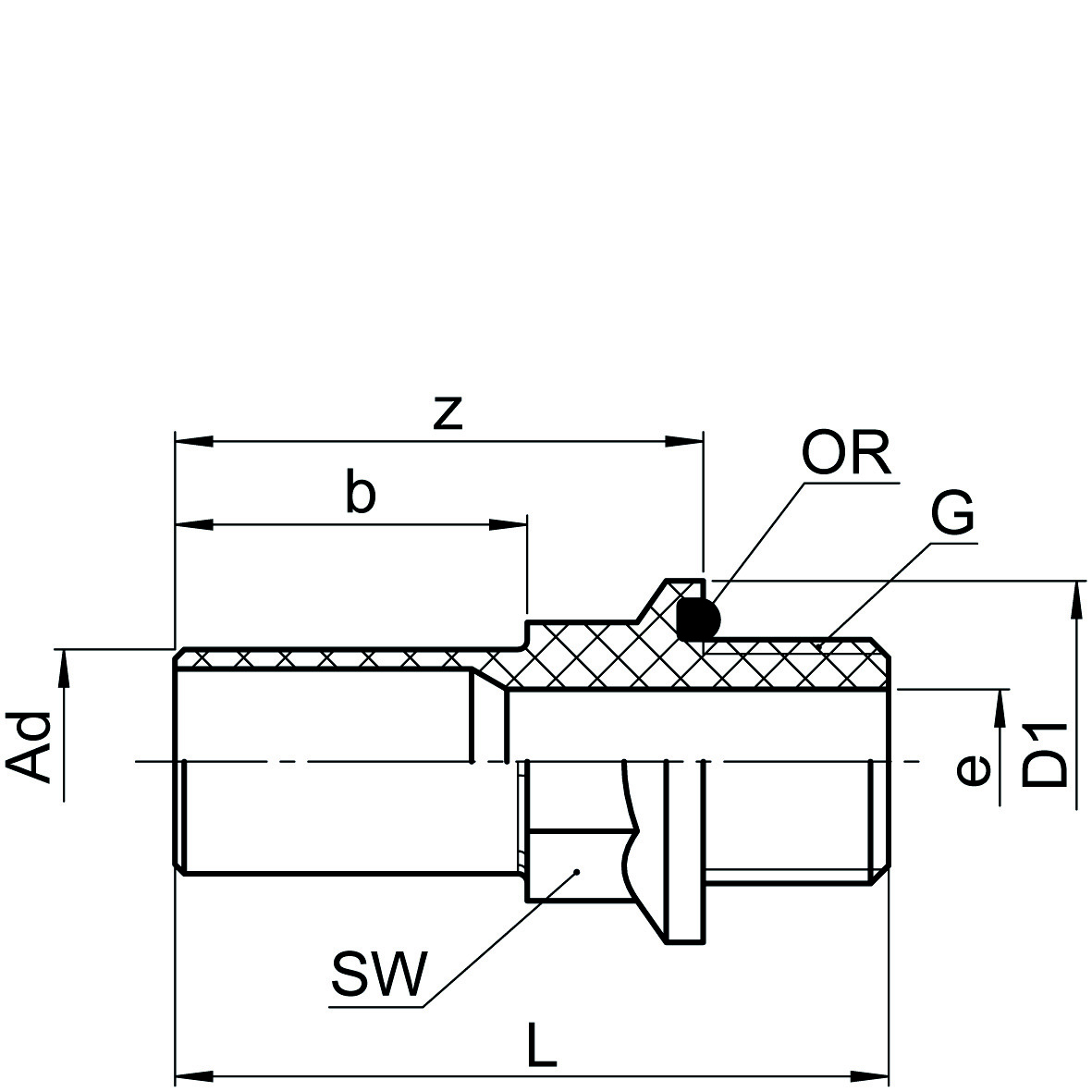

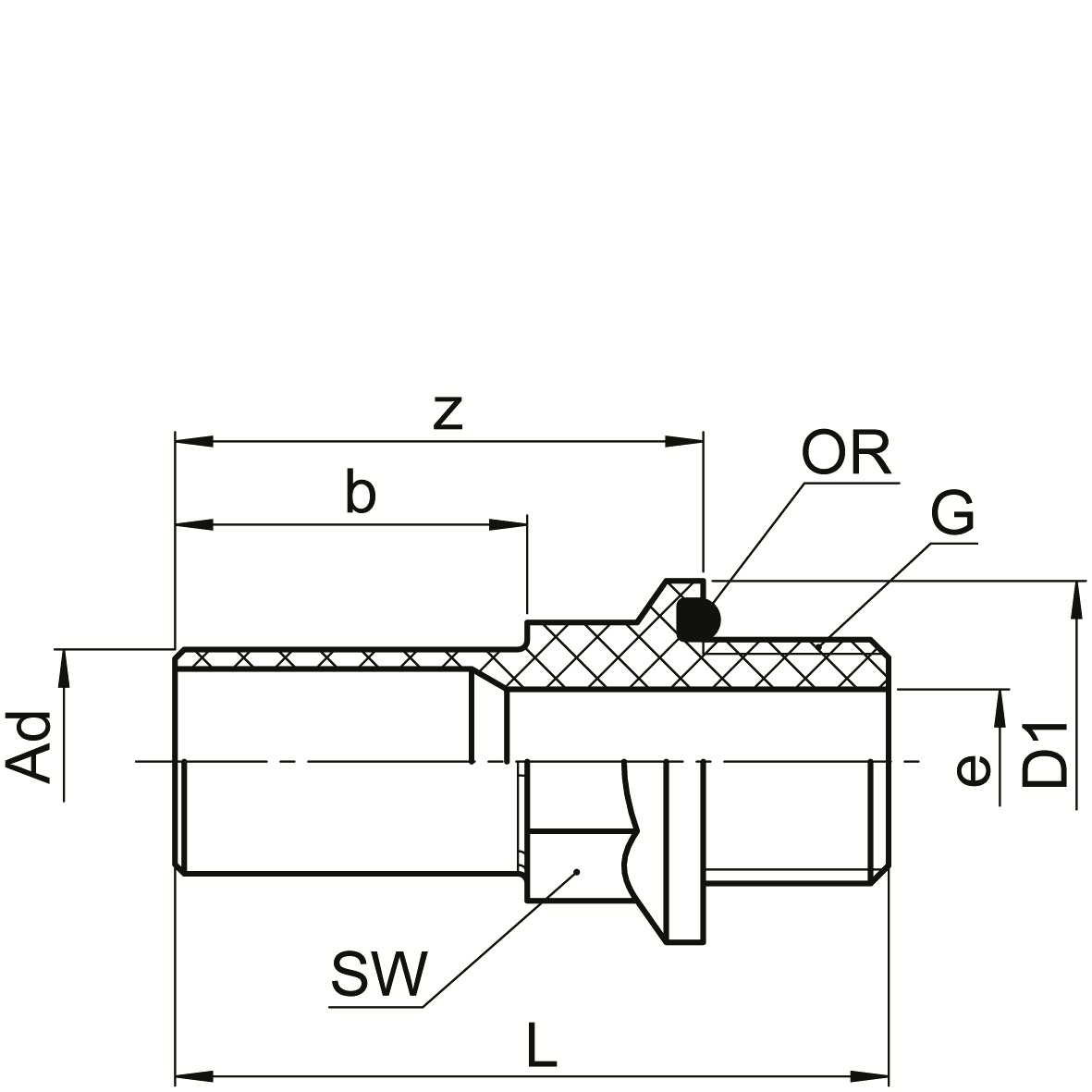

Artikelnummer	AD	G	bar	L	z	b	e	SW	D1
1261681100	6	1/8	10	30.5	22.5	13	4	10	16
1261681110	6	1/4	10	32.5	22.5	13	4	13	19.5
1261681120	6	3/8	10	33.5	23.5	13	4	17	23.5
1261681125	A6×1/2"	10	19	38.5	30	13	26.5	4	1.206
1261681160	8	1/8	10	31.5	23.5	13	5.1	10	16
1261681170	8	1/4	10	33.5	23.5	14	6	13	19.5
1261681180	8	3/8	10	34.5	24.5	14	6	17	23.5
1261681185	A8×1/2"	10	19	39.5	30	14	27.5	8	1.225
1261681270	10	1/4	10	34.5	24.5	15	8	13	19.5
1261681280	10	3/8	10	35.5	25.5	14	8	17	23.5
1261681285	10	1/2	10	40.5	28.5	15	8	19	30
1261681380	10	1/4	10	38.5	28.5	19	7.8	13	19.5
1261681390	12	3/8	10	39.5	29.5	19	10	17	23.5
1261681400	12	1/2	10	44.5	32.5	19	10	19	30
1261681564	16	3/8	10	45.5	35.5	25	9.8	17	23.5
1261681566	16	1/2	10	50.5	38.5	25	13	19	30
1261681568	16	3/4	10	55	41	25	13	22	35
