SO NV 51A30

Visa alla mått +

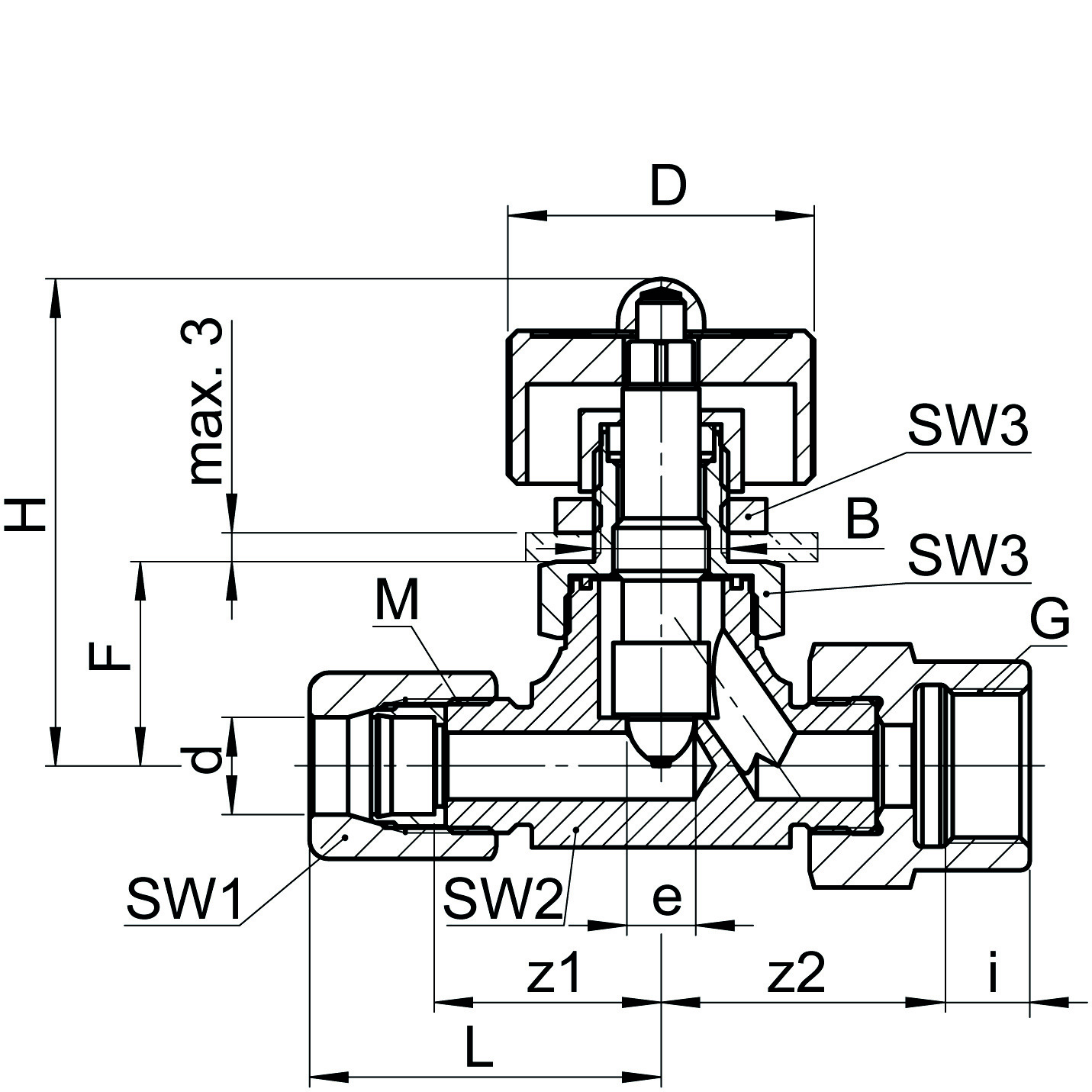

Artikelnummer	d	G	kv	bar	M	SW1/SW2/SW3	z1/z2	e	L/i	H/F
0680012060	4	1/8	3	100	10 x 1	12/14/14	17/20	3.5	25/10	37/14,5
0680012082	5	1/8	3.2	100	10 x 1	12/14/14	17/20	3.5	25/10	37/14,5
0680012100	6	1/8	3.5	100	10 x 1	12/14/14	17/20	3.5	25/10	37/14,5
0680012110	6	1/4	3.5	100	10 x 1	12/14/14	17/20	3.5	25/11	37/14,5
0680012135	6.35	1/8	3.5	100	10 x 1	12/14/14	17/20	3.5	25/10	37/14,5
0680012160	8	1/8	3.5	100	12 x 1	14/14/14	18,5/21,5	3.5	27/10	37/14,5
0680012170	8	1/4	3.5	100	12 x 1	14/14/14	18,5/21,5	3.5	27/12	37/14,5
0680012180	8	3/8	3.5	100	12 x 1	14/14/14	18,5/21,5	3.5	27/11	37/14,5
0680012230	9.52	1/4	10.5	64	14 x 1	17/22/22	23,5/26,5	7	34/12	51/21
0680012235	9.52	3/8	12.5	64	14 x 1	17/22/22	23,5/26,5	7	37/12	51/21
0680012270	10	1/4	10.5	64	14 x 1	17/22/22	23,5/26,5	7	35/12	51/21,5
0680012280	10	3/8	10.5	64	14 x 1	17/22/22	23,5/26,5	7	35/12	51/21,5
0680012390	12	3/8	12.5	64	16 x 1	19/22/22	23,5/26,5	7	36/12	51/21
0680012400	12	1/2	12.5	64	16 x 1	19/22/22	23,5/26,5	7	36/12	51/21
0680012434	12.7	1/2	12.5	64	20 x 1,5	24/24/22	26/29,5	7	40/12	52/22
0680012534	15	1/2	12.5	64	20 x 1,5	24/24/22	26/29,5	7	40/12	52/22
