1F20031

Union vinkel 90° utv. gänga

  • Vinkelkoppling PVDF
  • Slanganslutning/utvändig gänga
  • Finns även med NPT-gänga och metrisk gänga
  • Andra dimensioner mot förfrågan
  • Plastgänga bör endast användas mot plastgänga. Plast mot metall är ej att rekommendera

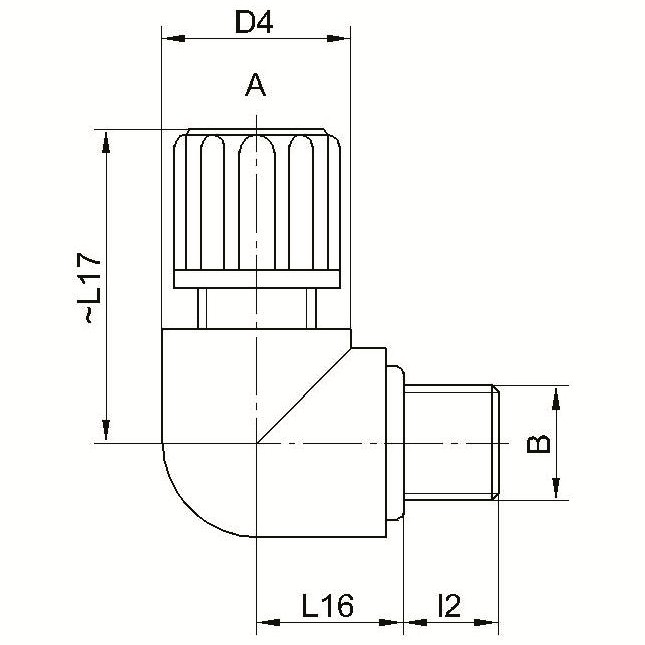

Visa alla mått +
Artikelnummer RSK ABl2L16L17D4Filer
1F20031-0604-R06 6/41/8"8122513
1F20031-0604-R08 6/41/4"12132615 CAD/Step
1F20031-0604-R10 6/43/8"12192920
1F20031-0604-R15 6/41/2"14153225
1F20031-0806-R06 8/61/8"8153015
1F20031-0806-R08 8/61/4"12153015 CAD/Step
1F20031-0806-R10 8/63/8"12153320
1F20031-0806-R15 8/61/2"14153625
1F20031-1006-R06 10/61/8"8173620
1F20031-1006-R08 10/61/4"12173620
1F20031-1006-R10 10/63/8"12173620
1F20031-1006-R15 10/61/2"14173925
1F20031-1008-R06 10/81/8"8173620
1F20031-1008-R08 10/81/4"12203620 CAD/Step
1F20031-1008-R10 10/83/8"12173620 CAD/Step
1F20031-1008-R15 10/81/2"14173925
1F20031-1208-R06 12/81/8"12194020
1F20031-1208-R08 12/81/4"12194020
1F20031-1208-R10 12/83/8"14194325
1F20031-1208-R15 12/81/2"16194530
1F20031-1210-R06 12/101/8"12194020
1F20031-1210-R08 12/101/4"12194020
1F20031-1210-R10 12/103/8"14194325
1F20031-1210-R15 12/101/2"16194530
1F20031-1410-R08 14/101/4"12214825
1F20031-1410-R10 14/103/8"12214825
1F20031-1410-R15 14/101/2"14214825
1F20031-1412-R08 14/121/4"12214825
1F20031-1412-R10 14/123/8"12214825
1F20031-1412-R15 14/121/2"14214825
